AlterSeeK-Path

AlterSeeK-Path generates altermagnetic k-point paths for band-structure calculations. It inserts a general k point k and its spin-flip partner k' into a standard high-symmetry path, using the IBZ centroid as the default general point.

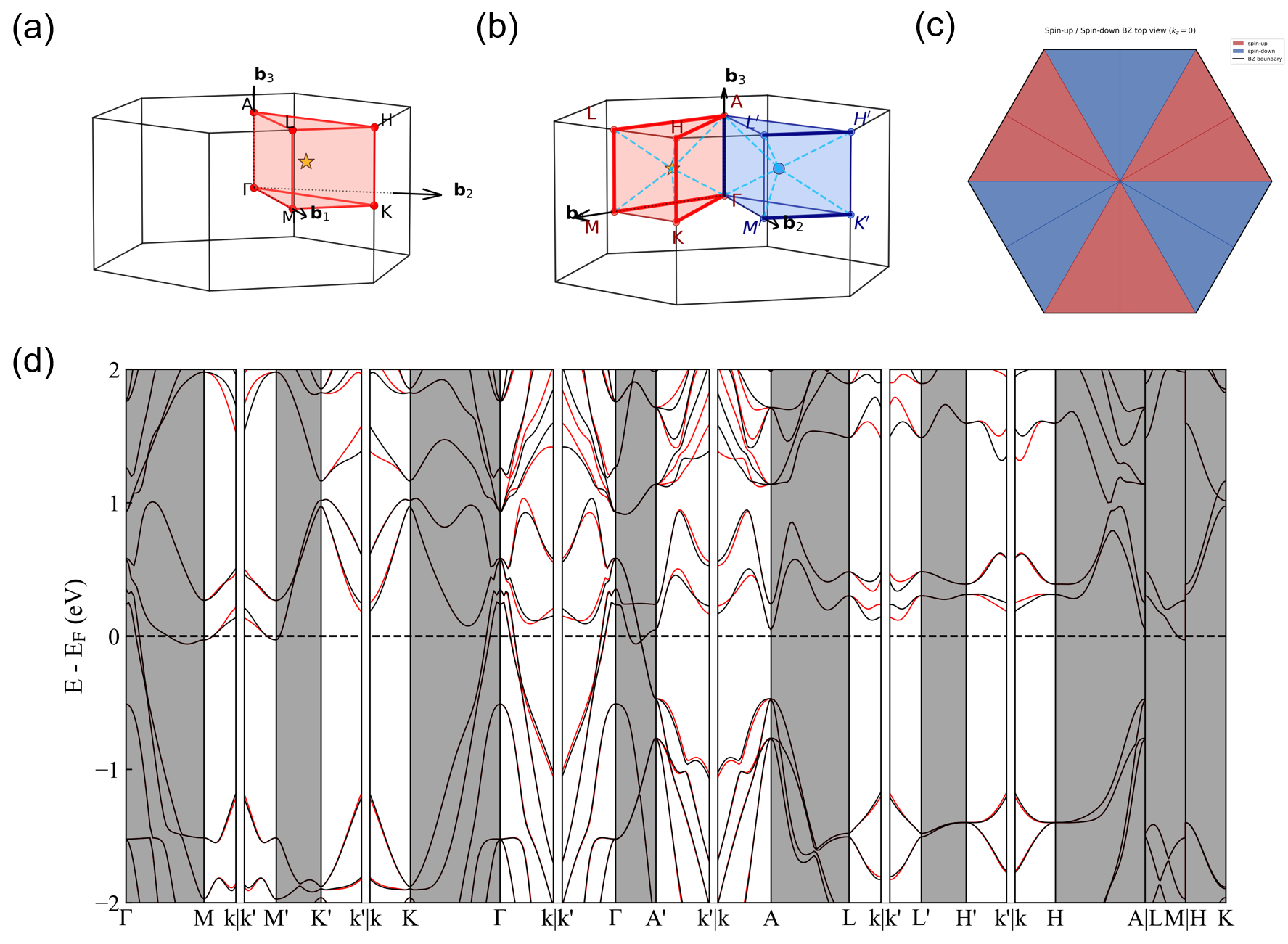

AlterSeeK-Path example

Current support: VASP workflows. Quantum ESPRESSO support is partial.

Installation

git clone https://github.com/yujia-teng/AlterSeeK-Path.git
cd AlterSeeK-Path
pip install -r requirements.txt
pip install -e .

Quick Start

alterseek-path

The script guides you through five interactive steps:

Step What it does Input needed
0 Finds spin-flip symmetry operations and prints a compact symmetry summary Structure file; magnetic moments for non-mcif inputs
1 Builds or reads the high-symmetry IBZ path Press Enter for auto path, or enter a KPOINTS-style file
2 Chooses the general k point Automatic IBZ centroid by default
3 Selects the spin-flip operation Press Enter for default, enter a number, type list, or type manual
4 Builds the altermagnetic path Automatic
5 Saves the output Output filename

The default output file is:

KPOINTS_modified

Inputs

Structure file

Type moments in atom order. Untyped atoms default to 0, so 1 -1 is enough when the two magnetic atoms appear first.

K-path source

Example

$ alterseek-path
=== Altermagnetic K-Path Generator ===

>>> Step 0: Spin symmetry
Enter structure file (default: POSCAR, supports .vasp/.cif/.mcif):
Magnetic moments (atom order, trailing atoms auto-fill to 0): 1 -1

Structure: POSCAR, atoms: 6
Space Group: P6_3mc (186)
Point Group: 6mm
Laue Group: 6/mmm
Magnetic SG: BNS 186.205, OG 186.3.1436 (UNI 1435, Litvin 1436, parent SG 186, type 3)
Spin group: COLLINEAR(axis=[0. 0. 1.])
Space-group operations: 12 total
Point operations: 12 unique
Actual point operations: 6 spin-flip, 6 spin-preserving
Inversion-extended k operations: 12 spin-flip, 12 spin-preserving (12 + 12 with translations)
Saved: spin_operations.txt, spin_flip_operations.txt, spin_preserve_operations.txt

>>> Step 1: High-symmetry k-path
IBZ type: hP2
Path: GAMMA-M-K-GAMMA-A-L-H-A | L-M | H-K
Press [Enter] to use this path, or type a filename to load your own:
Using HPKOT hP2 path (9 segments, 18 k-points)

>>> Step 2: General k-point
IBZ centroid: [0.277778, 0.111111, 0.250000]

>>> Step 3: Spin-flip operation
Found 12 spin-flip operations.
Default R: Option 1
Press [Enter] to use default, type a number, 'list' to show matrices, or 'manual':
Selected: Option 1

>>> Step 4: Build altermagnetic path
[Basis] Converted R from input-cell basis to primitive basis.
Primitive-basis R used for KPOINTS:
    [  1.00 -1.00   0 ]
    [  1.00  0.00   0 ]
    [   0   0   1 ]
k' = [-0.1111, 0.3889, 0.2500]
Generated path: GAMMA-M-k | k'-M'-K'-k' | k-K-GAMMA-k | ... | k-H-A | L-M | H-K
Full path: 9 original segments -> 21 generated segments, 36 k-points

>>> Step 5: Save
Displaying generated figures...
Saved: .\POSCAR_ibz_hP2.png
Saved: POSCAR_spinflip_hP2.png
Saved: POSCAR_spinbz_hP2.png
Saved: POSCAR_spinbz_top_hP2.png

Output Files

File Description
KPOINTS_modified Altermagnetic k-path for VASP line-mode band calculations
spin_operations.txt Full spin-symmetry operation log
spin_flip_operations.txt Spin-flip rotation matrices used by the main workflow
spin_preserve_operations.txt Spin-preserving rotation matrices used for completion/diagnostics
*_ibz_*.png IBZ/BZ figure with the selected general k point
*_spinflip_*.png Spin-up/spin-down IBZ connection figure
*_spinbz_*.png Spin-colored BZ figure
*_spinbz_top_*.png Top-view spin-colored BZ figure

BZ figures are PNG by default. To also save PDF copies from alterseek-path, set:

$env:ALTERSEEK_BZ_FORMATS = "png,pdf"
alterseek-path

For Laue groups -1, -3, and m-3, no altermagnetic splitting is supported. The code prints a note and writes the ordinary IBZ path.

Band Plotting

After VASP and VASPKIT generate the spin-resolved band files, run:

alterseek-path bandplot

By default, this reads:

KLABELS
REFORMATTED_BAND_UP.dat
REFORMATTED_BAND_DW.dat

and writes one output file:


Plot settings with alterband.toml

If a file named alterband.toml exists in the same directory, the band plotter uses it automatically. A typical file is:

emin = -2
emax = 2
fig_width = 16
fig_height = 5
gap_width_inches = 0.05
# Legacy fallback: half-width as a fraction of the full k-path.
# gap_frac = 0.004
rotate_xtick_labels = false
xtick_rotation = 45
output = "alterband.png"

Then run:

alterseek-path bandplot

For PDF from the TOML file, set output = "alterband.pdf".

Command-line options override the TOML file:

alterseek-path bandplot -o alterband.pdf

PNG and PDF outputs

alterseek-path bandplot -o alterband.png
alterseek-path bandplot -o alterband.pdf

Optional arguments:

alterseek-path bandplot --emin -3 --emax 3 -o my_band.png
alterseek-path bandplot --klabels KLABELS --up REFORMATTED_BAND_UP.dat --down REFORMATTED_BAND_DW.dat
alterseek-path bandplot --gap-width-inches 0.04

gap_width_inches sets the full visual width of every k|k' gap, which keeps the printed separator size consistent across figures with different path lengths.

alterseek-bandplot is an optional shortcut for the same band plotter.

Additional Utilities

Standalone spin-flip analysis:

python find_sf_operations.py

IBZ centroid and BZ visualization for one structure:

python compute_centroid_hybrid.py POSCAR

Requirements

pip install -r requirements.txt

Citation

@article{v3fg-6smc,
  title = {$G$-type antiferromagnetic ${\mathrm{BiFeO}}_{3}$ is a multiferroic $g$-wave altermagnet},
  author = {Urru, Andrea and Seleznev, Daniel and Teng, Yujia and Park, Se Young and Reyes-Lillo, Sebastian E. and Rabe, Karin M.},
  journal = {Phys. Rev. B},
  volume = {112},
  issue = {10},
  pages = {104411},
  numpages = {14},
  year = {2025},
  month = {Sep},
  publisher = {American Physical Society},
  doi = {10.1103/v3fg-6smc},
  url = {https://link.aps.org/doi/10.1103/v3fg-6smc}
}
